The 8W of power per channel of Achilles requires high sensitivity loudspeakers to enjoy your music. The triode class A configuration of the 300B with the high linearity of the preamplification stage offer an unsurpassed audio experience to every audiophile.
Gold plated RCA connectors are implemented for the signal input and WBT-0703 Next Gen binding posts for the loudspeakers.
Carefully selected values and types of the electronic components contribute to the reliable circuits operation and the high sound quality of the amplifier. Mundorf Evo signal capacitors are used in Achilles Ultra.
The meticulous PCB design ensures excellent behavior in SNR and distortion.
Inner signal wiring with high quality shielded signal cable. Power wiring uses high quality copper cables of more-than-needed AWG gauge, to achieve low impedance power transfer. All power cables are twisted in pairs to minimize the electromagnetic interference.
The handmade multilayer output transformers allow the amplifier to reveal the sound stage and all the music details through the entire audio spectrum.
Made by us and tested thoroughly for quality and reliability.
The same applies to the power transformer. The positioning of the transformers is such that minimizes the magnetic coupling between power and output transformers.

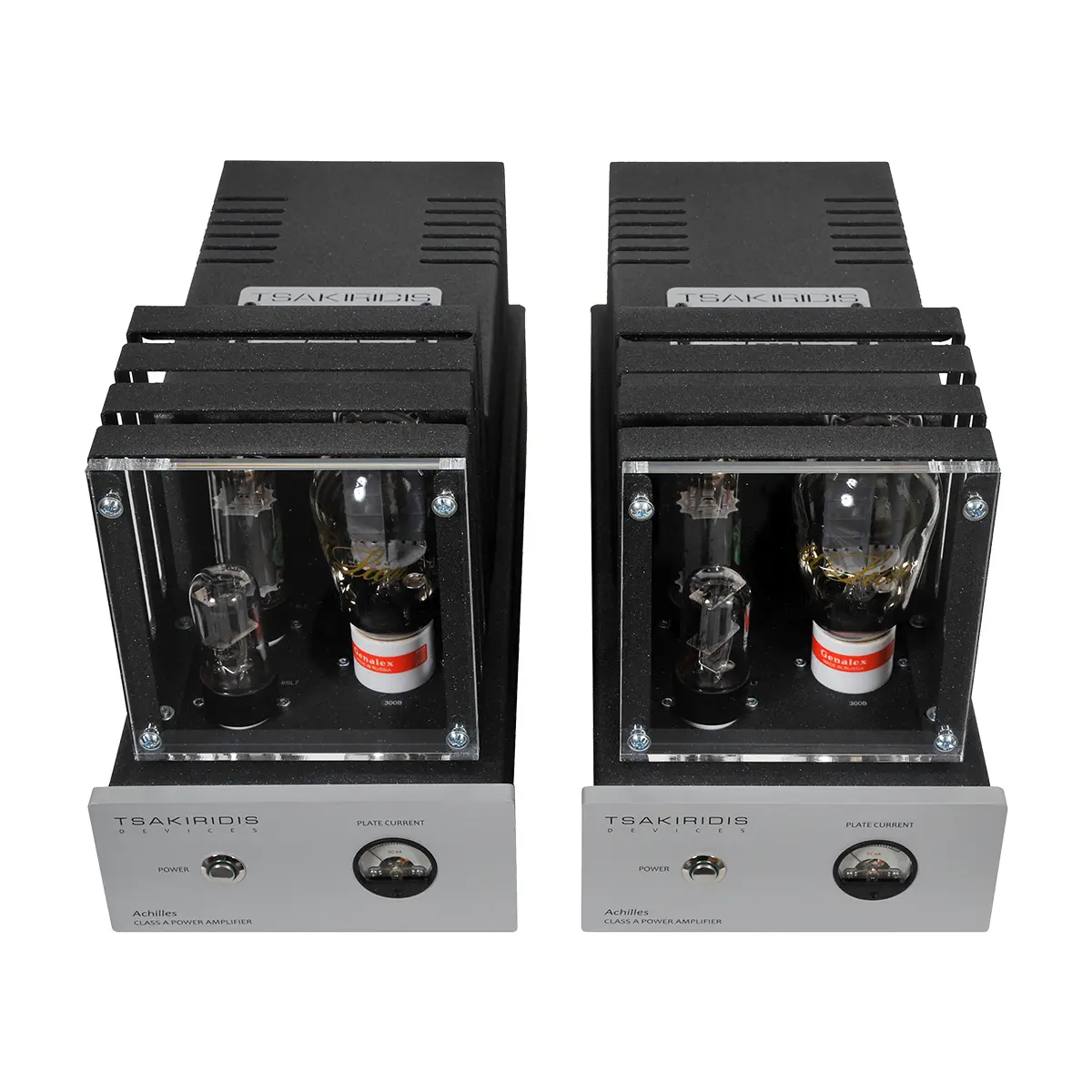

Gallery
Features
Inputs: 1 line input
Input/Output connectors: RCA gold plated
Speaker connectors: WBT-0703 Next Gen
Power supply capacitors: United Chemicon 105oC
Signal capacitors: Mundorf Evo capacitors
Power resistors: Carbon film 5% tolerance
Power transformer: Handmade 250W each unit
Output transformer: Handmade 8 layer windings high quality core
Driving stage tubes: 1x6SL7, 1x EL34 each unit
Power tubes: 1x300B each unit
Specifications
Output Power: 2x8W
Input impedance: 100 kOhm
Output impedance: 6 Ohm
Input sensitivity: 1V
Signal to Noise Ratio (SNR): 85db
Rise time: 4us @ 10kHz
Harmonic distortion: 2W @ 1kHz 0.40%
Frequency response: -3db 12Hz-55000Hz
Power supply energy: 80Joule each unit
Power consumption: 95W each unit
Weight: 4.5kgr each unit
Dimensions (WxDxH): (17x43x22)cm
Notice: Features and specifications is subject to change without notice. Photos may vary from actual product.
