Apollon Ultima implements a dual push-pull configuration for each channel allowing it to draw large amounts of power from the power tubes. So Apollon Ultima can drive easily power hungry loudspeakers. Gold plated RCA and XLR connectors are implemented for the signal input and WBT-0710 Next Gen binding posts for the loudspeakers. The XLR balanced input is pseudo balanced. True balanced XLR input can be provided upon request.
Carefully selected values and types of the electronic components contribute to the reliable circuits operation and the high sound quality of the amplifier. Metal film power resistors and Mundorf Supreme silver gold oil signal capacitors are used in Apollon Ultima.
The meticulous PCB design ensures excellent behavior in SNR and distortion.
Inner signal wiring with high quality shielded signal cable. Power wiring uses high quality copper cables of more-than-needed AWG gauge, to achieve low impedance power transfer. All power cables are twisted in pairs to minimize the electromagnetic interference.
The handmade 16 layer output transformers with high quality copper wire and core material enable the amplifier to reveal an excellent sound stage and the slightest music details through the entire audio spectrum to give you a unique audio experience.
Made by us and tested thoroughly for quality and reliability.
The same applies to the power transformer. The positioning of the transformers is such that minimizes the magnetic coupling between power and output transformers.

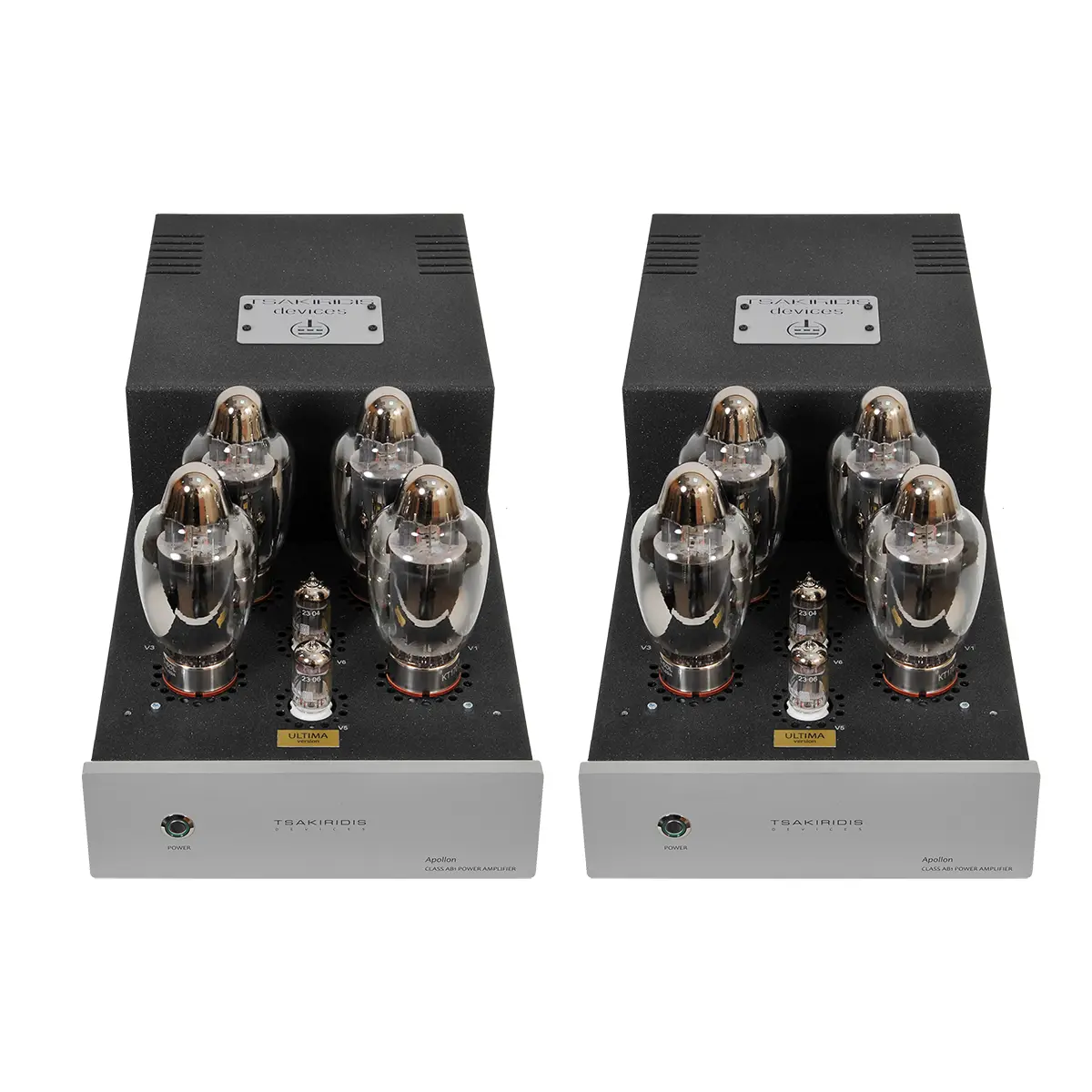

Gallery
Features
Inputs: 1 line input
Phono input: No
Outputs: No
Other connections: No
Wireless connections: No
Input selection: No
Input/Output connectors: RCA gold plated
Speaker connectors: WBT-0710 Next Gen
Remote control: No
Volume control: No
Power supply capacitors: United Chemicon 105oC
Signal capacitors: Mundof Supreme Silver Gold Oil capacitors
Power resistors: Metal film 5% tolerance
Low power resistors: Metal film 1% tolerance
Power transformer: Handmade 400W each unit
Output transformer: Handmade 16 layer 6N copper with high quality core
Driving stage tubes: premium quality 2x12AT7 each unit
Power tubes: 4xKT170 each unit
Specifications
Output Power: 2x200W
Input impedance: 100 kOhm
Output impedance: 6 Ohm
Input sensitivity: 350mV
Signal to Noise Ratio (SNR): 87db
Channel separation: –
Rise time: 4us @ 10kHz
Harmonic distortion: 10W @ 1kHz 0.36%
Frequency response: -3db 4Hz-78000Hz
Power supply energy: 300Joule each unit
Power consumption: 250W each unit
Weight: 23kgr each unit
Dimensions (WxDxH): (24.5x53x23)cm
Notice: Features and specifications is subject to change without notice. Photos may vary from actual product.
