The push – pull configuration of Artemis draws enough power from the output tubes to drive a wide range of loudspeakers. Gold plated RCA connectors are implemented for the signal input and high quality binding posts for the loudspeakers.
Carefully selected values and types of the electronic components contribute to the reliable circuits operation and the high sound quality of the amplifier. The meticulous PCB design ensures excellent behavior in SNR, distortion and channel separation.
Inner signal wiring with high quality shielded signal cable. Power wiring uses high quality copper cables of more-than-needed AWG gauge, to achieve low impedance power transfer. All power cables are twisted in pairs to minimize the electromagnetic interference.
The handmade multilayer output transformers allow the amplifier to reveal the sound stage and all the music details through the entire audio spectrum.
Made by us and tested thoroughly for quality and reliability.
The same applies to the power transformer. The positioning of the transformers is such that minimizes the magnetic coupling between power and output transformers.

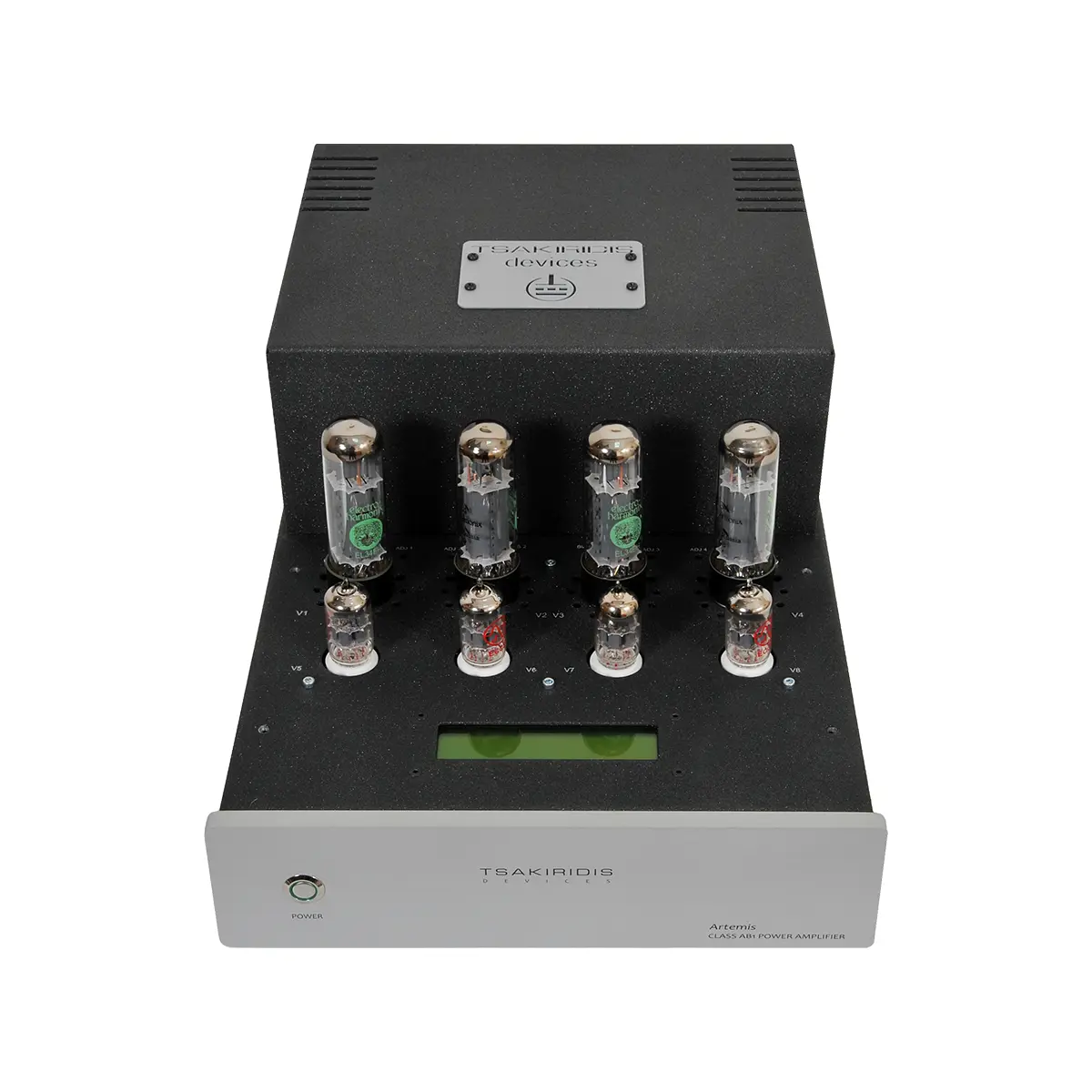

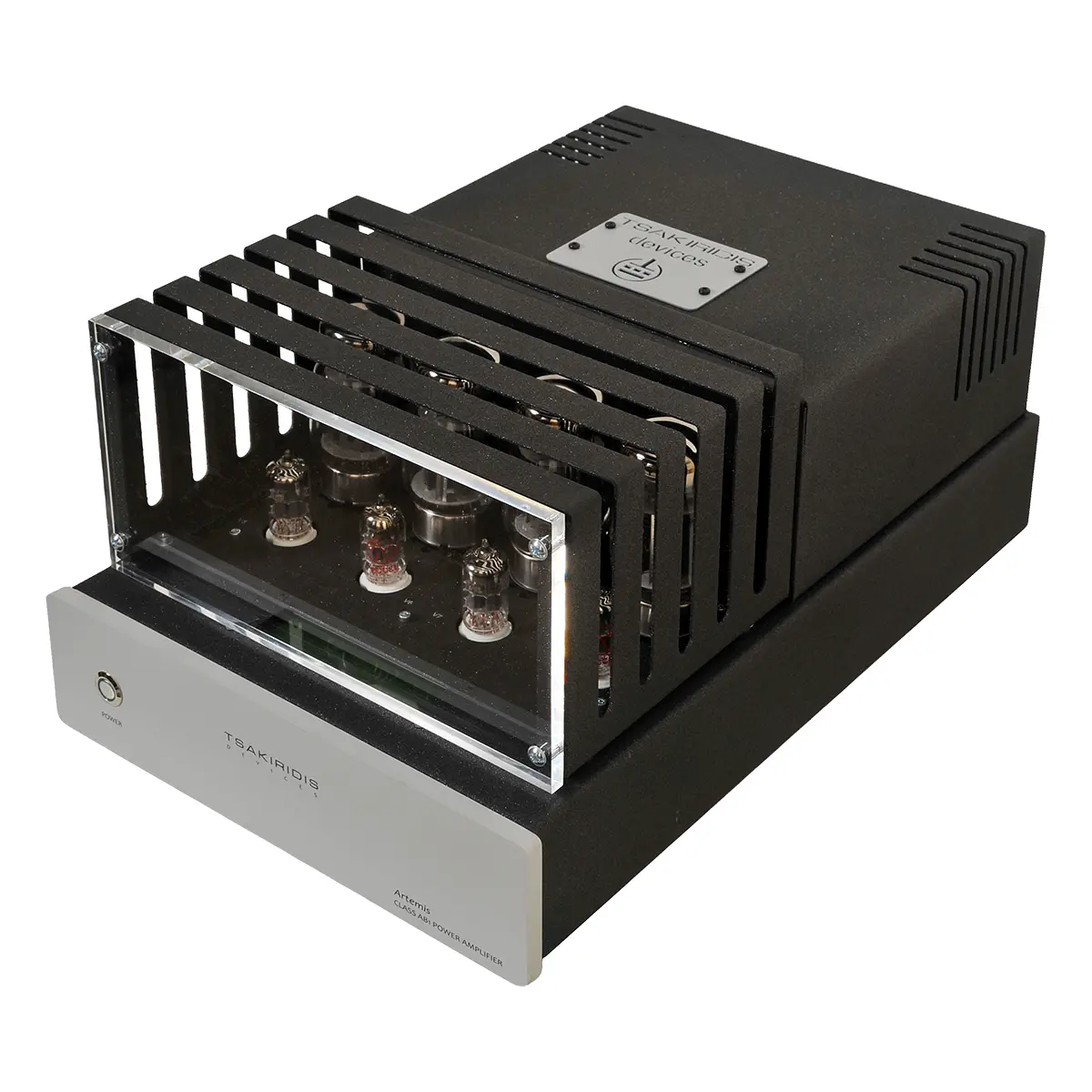

Gallery
Features
Inputs: 1 line input
Input/Output connectors: RCA gold plated
Speaker connectors: Ultimax
Power supply capacitors: United Chemicon 105oC
Signal capacitors: Non inductive polypropelene film capacitors
Power resistors: Carbon film 5% tolerance
Low power resistors: Metal film 1% tolerance
Power transformer: Handmade 300W
Output transformer: Handmade 8 layer windings
Driving stage tubes: 4x12AT7
Power tubes: 4xEL34
Specifications
Output Power: 2x35W
Input impedance: 100 kOhm
Output impedance: 6 Ohm
Input sensitivity: 350mV
Signal to Noise Ratio (SNR): 85db
Channel separation: 68db
Rise time: 4us @ 10kHz
Harmonic distortion: 10W @ 1kHz 0.40%
Frequency response: -3db 15Hz-72000Hz
Power supply energy: 150Joule
Power consumption: 110W
Weight: 20kgr
Dimensions (WxDxH): (29x46x23)cm
Notice: Features and specifications is subject to change without notice. Photos may vary from actual product.
