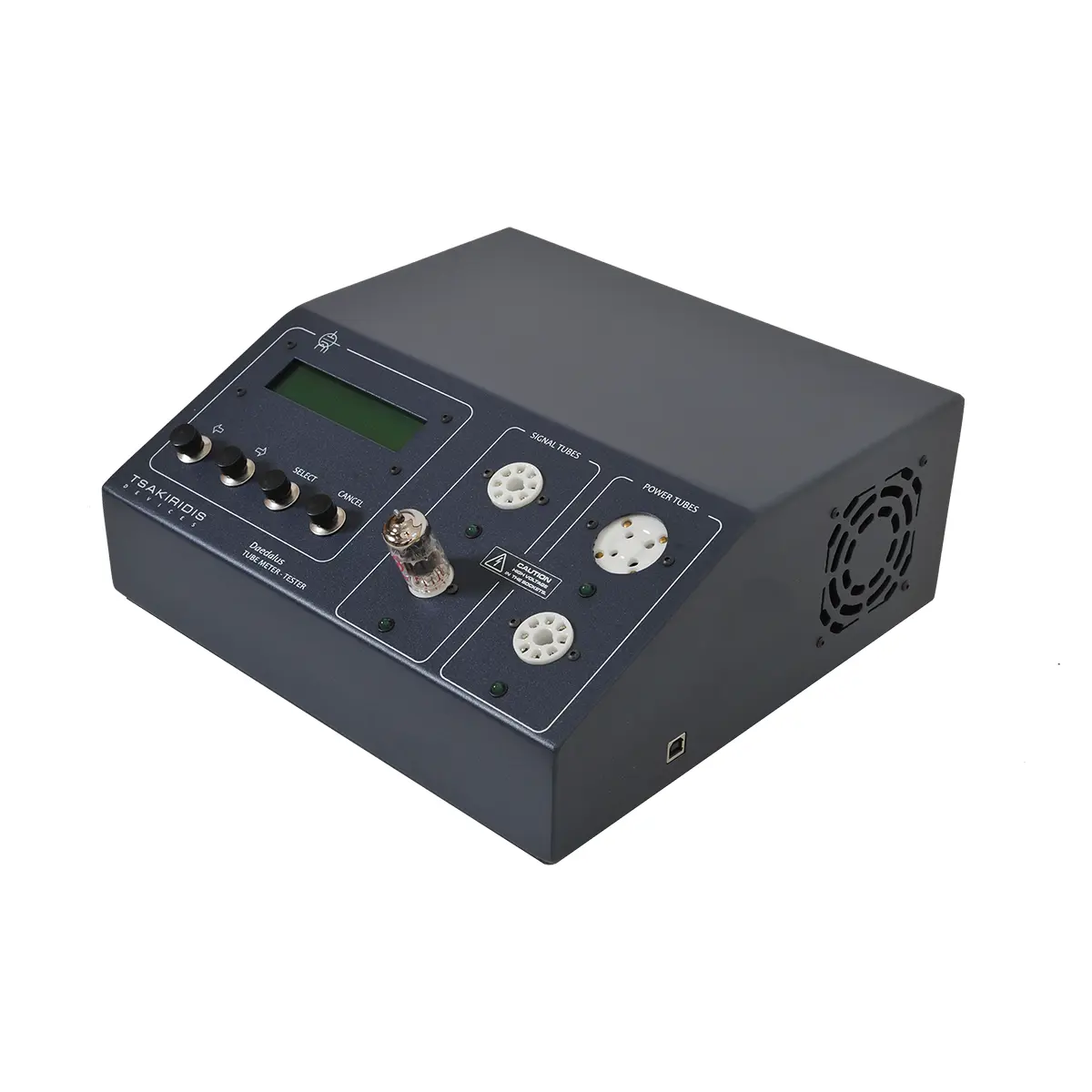

Daedalus helps you to find out if a tube is worn out, or can cause
damage to the device you intended to use it.
With Daedalus you can easily match your tubes.
The whole process is fully automated and it is very easy to use.
At the end of each test there is a full report for the results.
Daedalus has a large library of tubes which is continuously updated.
The software updates are easily loaded through the USB port located
on the side of Daedalus.
Tube adaptors are provided by Tsakiridis – devices for tubes that don’t
match directly the tube bases on Daedalus.
There is a software development that will give you the ability to draw the characteristics of each tube on your PC.
Daedalus is a very useful and powerful tool for all tube enthusiasts.
The tube tester evaluates the tube undertests by the following procedures.
- Filament condition: The filaments are tested for open circuit and the voltage / current draw by them is monitored and evaluated.
- Anode condition: The tube tester checks for short circuits between the anode and the grid. The tube is checked for any leakage current between the anode and the cathode.
- Transconductance measurement: The tube tester measures the transconductance of the tube on specific points of the datasheet curve as it is given on the manufacturer datasheet.
Compatible Tubes
The adaptors are provided upon request.
5687 (adaptor 4)
5751
6072
6197 (adaptor 5)
6C45 (adaptor 6)
6CG7
6CS7
6DJ8 (adaptor 2)
6FQ7
6H30
6H8C
6H9C
6SL7 (adaptor 11)
6SN7
12AT7
12AU7
12AX7
12AY7
12BY7 (adaptor 3)
12BZ7
ECC99
CV181
6SK7 (adaptor 9)
E180F (adaptor 10)
6N3P
EF86 (adaptor 13)
EF95 (adaptor 14)
EF804 (adaptor 15)
6AW8A (adaptor 12)
The adaptors are provided upon request.
2A3
300B
5881
6CA7
6550
6V6
6L6
EL34
EL84 (adaptor 1)
KT6
KT77
KT88
KT90
KT100
KT120
KT150
E55L (adaptor 7)
CV391 (adaptor 8)
6AS7
Gallery
Features
Large library of tubes renewed and updated frequently
Tube adaptors to match any tube
Signal and power tubes testing
Easy software update via PC USB connection
Specifications
Power consumption: 20W idle 80W during test
Weight: 3kgr
Dimensions (WxDxH): (31.5×29.5×14)cm
Notice: Features and specifications is subject to change without notice. Photos may vary from actual product.
