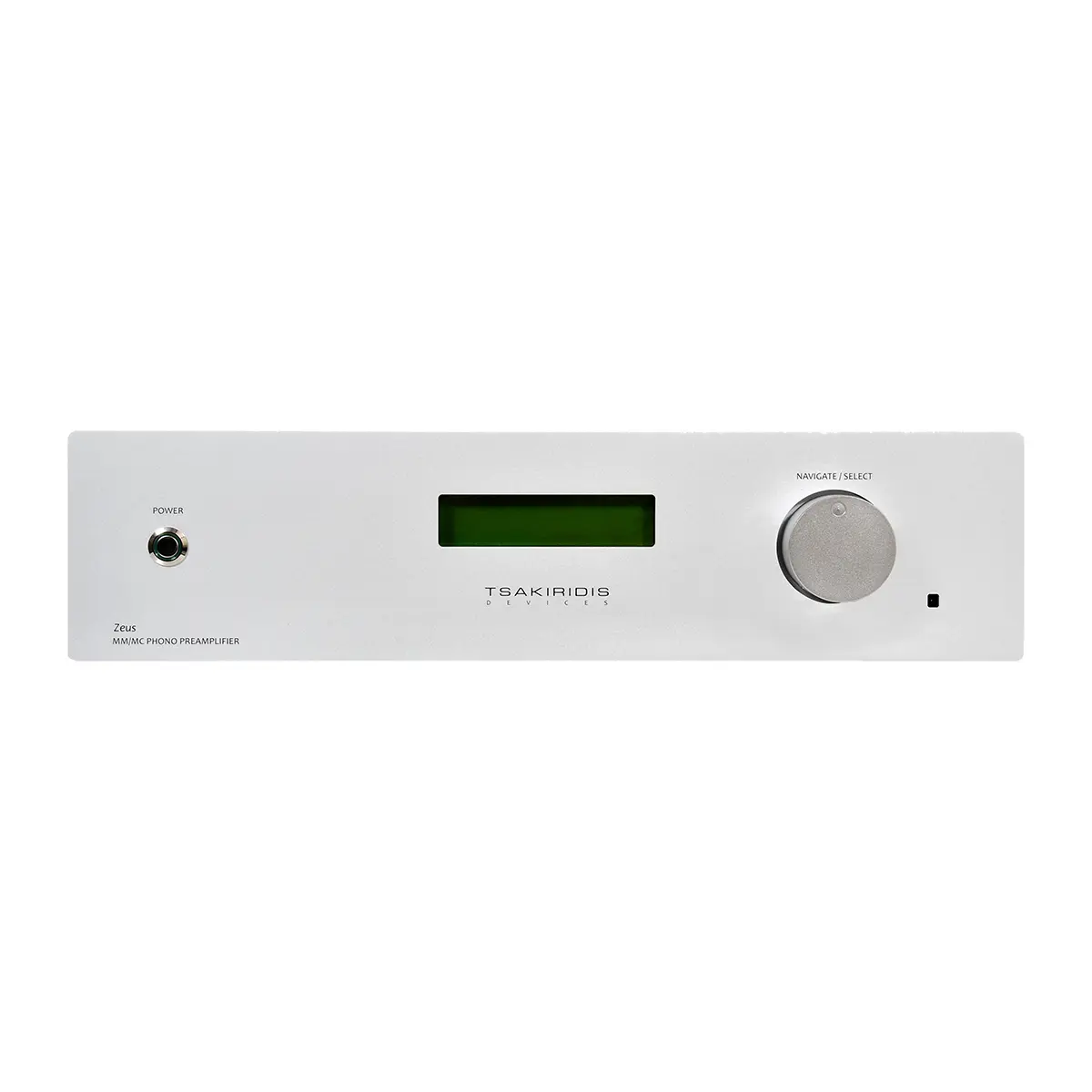

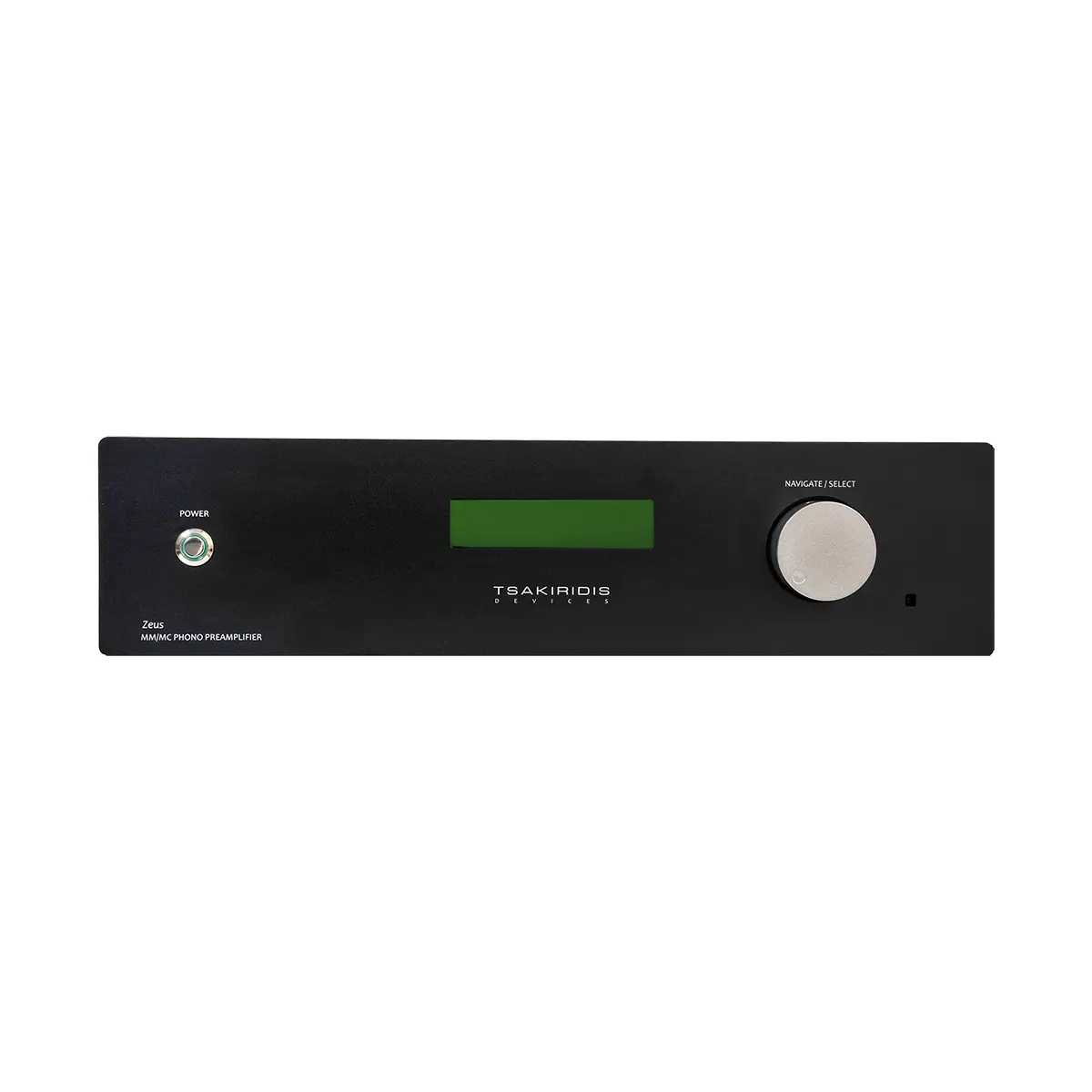

Each input of Zeus Ultima is separately configured in all parameters (MM/MC, input resistance/capacitance and gain) and stored in memory. This can be done thru the knob on the face plate and the display or via the remote control. The values for input resistance, capacitance and gain are selected via high quality signal relays.
Gold plated RCA and XLR connectors are implemented for the signal inputs/outputs.
An elegant remote control in aluminum case offers you control over all the functions of Zeus Ultima phono preamplifier. Input selection and parameter settings for each input.
Carefully selected values and types of the electronic components contribute to the reliable circuits operation and the high sound quality of the preamplifier. Mundorf Evo silver gold oil capacitors and premium quality tube are used in Zeus Ultima for superior audio performance. The meticulous PCB design ensures excellent behavior in SNR, distortion and channel separation.
Inner signal wiring with high quality shielded signal cable. Power wiring uses high quality copper cables of more-than-needed AWG gauge, to achieve low impedance power transfer. All power cables are twisted in pairs to minimize the electromagnetic interference.
The handmade power transformer is thoroughly tested for quality and reliability. The positioning of the transformer is such that minimizes the magnetic interference with the sensitive circuits of Zeus Ultima. Furthermore the transformer has copper foil shielding.
Gallery
Features
Inputs: 2 RCA inputs
Phono input: MM / MC programmable
Outputs: 1 RCA, 1 XLR (pseudo-balance)
Input selection: High grade signal relays
Input/Output connectors: RCA & XLR gold plated
Remote control: Yes
Informative Display: Yes
Power supply capacitors: United Chemicon 105oC
Signal capacitors: Mundorf Evo Silver Gold Oil capacitors
Power resistors: Carbon film 5% tolerance
Low power resistors: Metal film 1% tolerance
Power transformers: Handmade 50W
Phono stage tubes: premium quality 1x12AT7
Input stage: Ultra low noise opamps
Specifications
Voltage Gain: selectable (42, 49, 62, 68)db
Input impedance: Selectable (125, 200, 340, 500, 1k, 47k) Ohm
Input Capacitance: Selectable (22, 55, 69, 102)pF
RIAA Equalization: <0.5db
Output impedance: 150 Ohm
Maximum Output Voltage: 10V rms
Signal to Noise Ratio (SNR): 89db
Channel separation: 78db
Harmonic distortion: 1V @ 1kHz 0.038%
Power consumption: 30W
Weight: 12kgr
Dimensions (WxDxH): (43x35x12)cm
Notice: Features and specifications is subject to change without notice. Photos may vary from actual product.
